Capabilities

5 Axis CNC Machining

Large-Format, High-Precision, Production-Ready

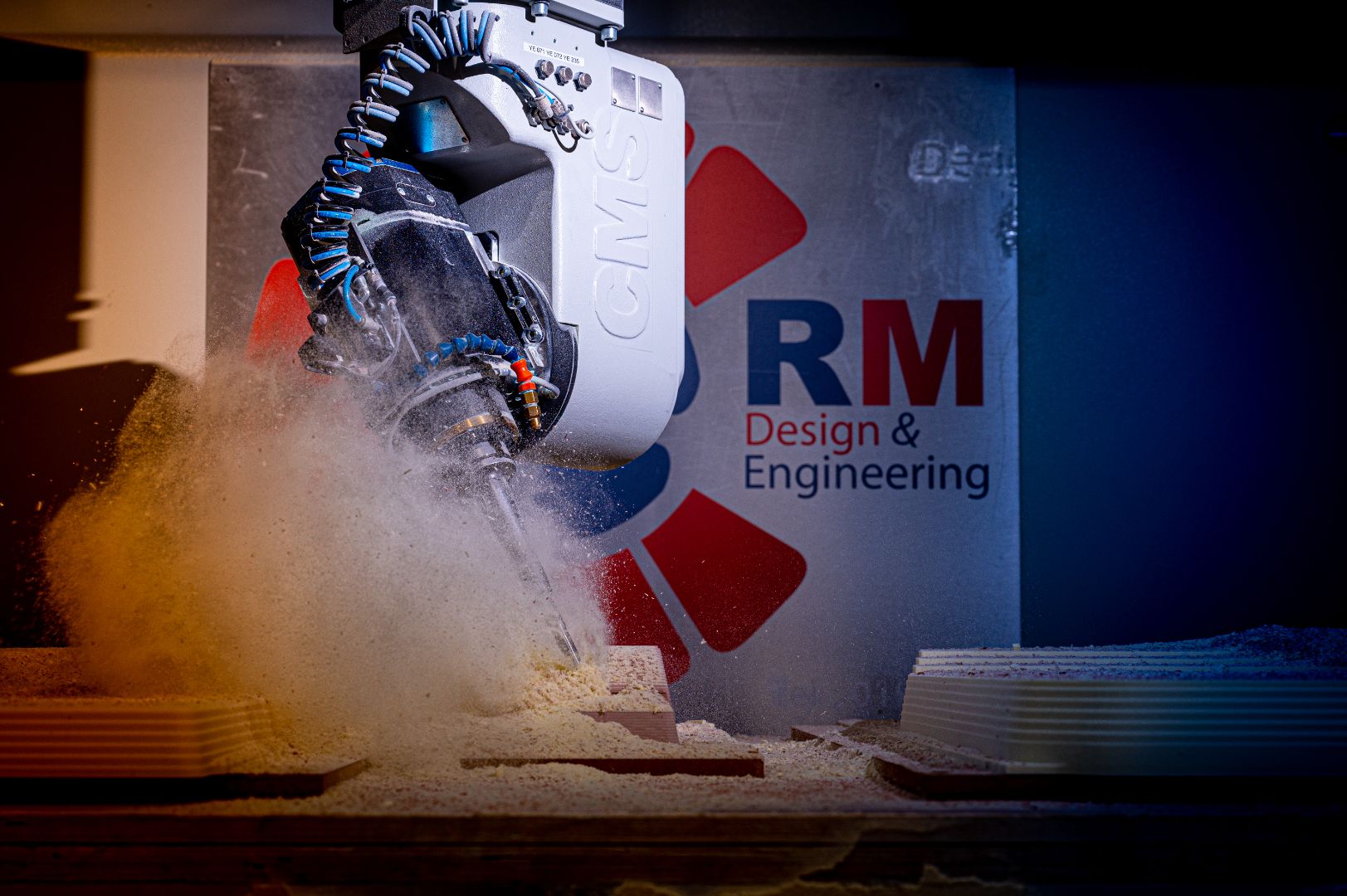

5 Axis CNC Machining

We don't offer machining as a sideline.

Our entire facility is built around 5-axis CNC capability, multiple CMS machining centres, 9,000 sq.ft of dedicated floor space, and a team that programmes, sets, and runs complex tooling every single day.

We machine the components that other shops either can't handle or won't quote. Large-format capacity, and the engineering knowledge to programme efficient toolpaths that protect both the tool and the finish.

Why 5-Axis Changes Everything

Conventional 3-axis machining means multiple setups, repositioning errors, and compromised surface quality on complex geometry. Every time you re-datum a part, you introduce risk.

5-axis simultaneous machining eliminates that. One setup. Continuous tool contact. Consistent surface finish across compound curves, undercuts, and deep-pocket features that would require four or five operations on a 3-axis machine.

For our customers, that translates directly into:

Tighter tolerances held across the entire part, not just the easy faces
(+/- 0.2mm in positional tolerance and +/- 0.15mm in surface tolerance)

Superior surface finish requiring less hand-finishing downstream

Faster delivery, fewer setups means fewer days on the machine

Reduced cost, less handling, less rework, less scrap

Complex geometry machined in a single operation

Tooling that performs from first pull to last

We programme exclusively in Autodesk PowerMill, the industry standard for complex 5-axis toolpath generation, giving us complete control over tool engagement, step-over strategy, and surface quality.

Capability

Our CNC Machining Capability

Multiple CMS 5-axis machining centres operating across 9,000 sq.ft of dedicated production space. Here's what we machine, day in, day out:

Large Format Tooling

Composite moulds, vacuum forming tools, thermoforming tooling, and production patterns up to 4m+ in length. Machined complete in a single setup where possible.

Prototype Components

First-article components, development parts, and functional prototypes delivered fast, often within days, not weeks.

Precision Components

Tight-tolerance machined components in aluminium, steel, tooling board, composites, and engineering plastics for demanding applications.

Models & Styling Bucks

Full-scale styling bucks, development models, and presentation models machined to sub-millimetre accuracy from tooling board and foam substrates.

Composite Patterns

CNC-machined master patterns for composite mould manufacture, held to profile tolerances as tight as 0.05mm where the programme demands it.

Specialist Engineering Projects

Bespoke manufacturing solutions for projects that don't fit a standard category, reverse-engineered components, one-off assemblies, and complex multi-part builds.

Ali Plate Machining

Precision-machined aluminium plate components, fixtures, mounting brackets, structural elements, and production parts. Excellent dimensional accuracy and surface quality, from one-offs to batch production.

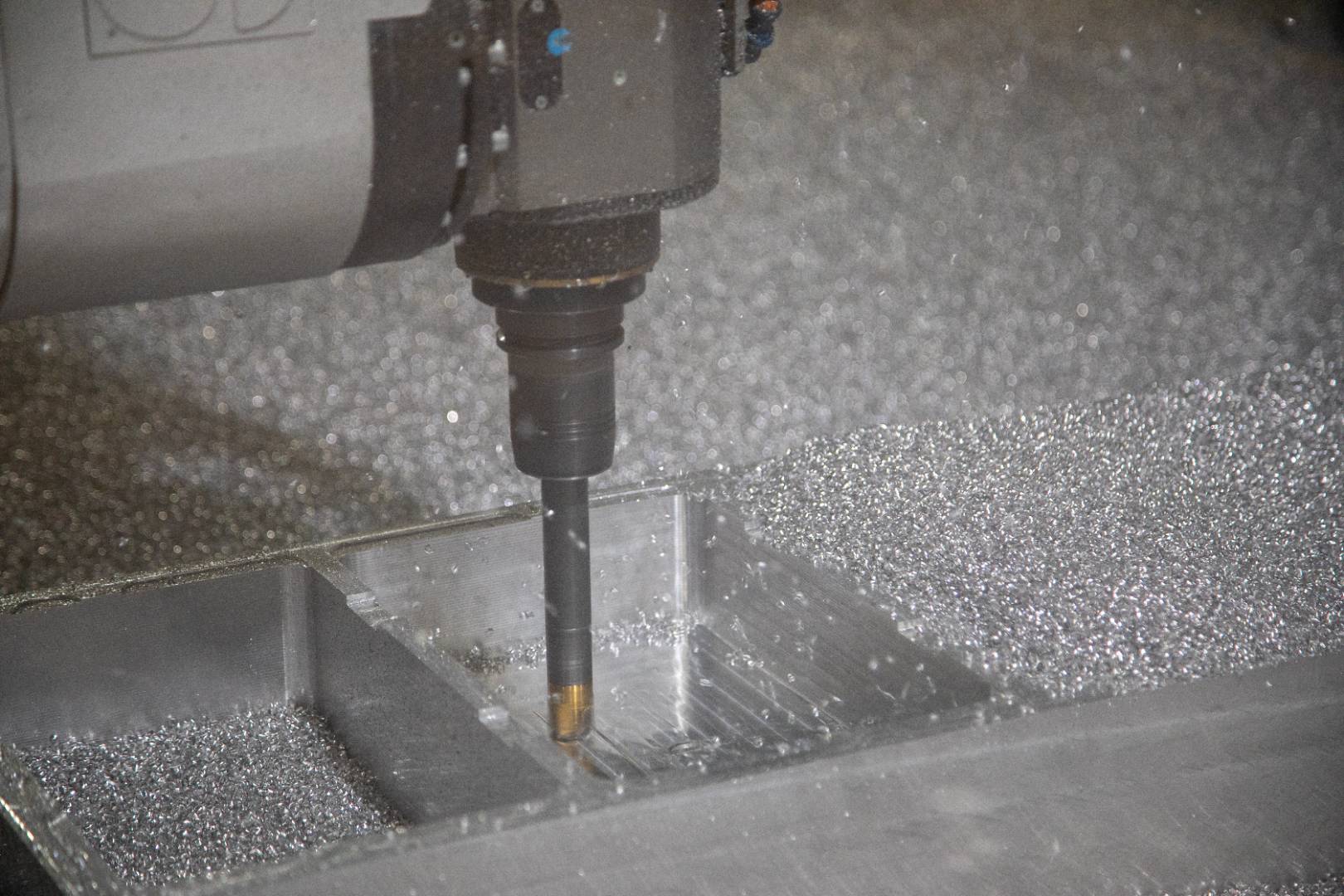

More Than Machining

The Difference Between Cutting Metal and Engineering Solutions

Anyone can buy a 5-axis machine. The difference is what happens before the spindle starts turning.

Our engineers review every job for manufacturability before programming begins, questioning tolerances that add cost without function, suggesting datum strategies that improve accuracy, and optimising setups to reduce lead time.

That engineering-first approach means:

Toolpaths optimised for surface quality, not just cycle time

Fixturing strategies that maintain accuracy across large parts

Material selection advice based on real machining experience

Proactive communication when we spot potential issues

PowerMill programming by experienced 5-axis specialists

Planned machine maintenance, no mid-job breakdowns

Consistent results, job after job, year after year

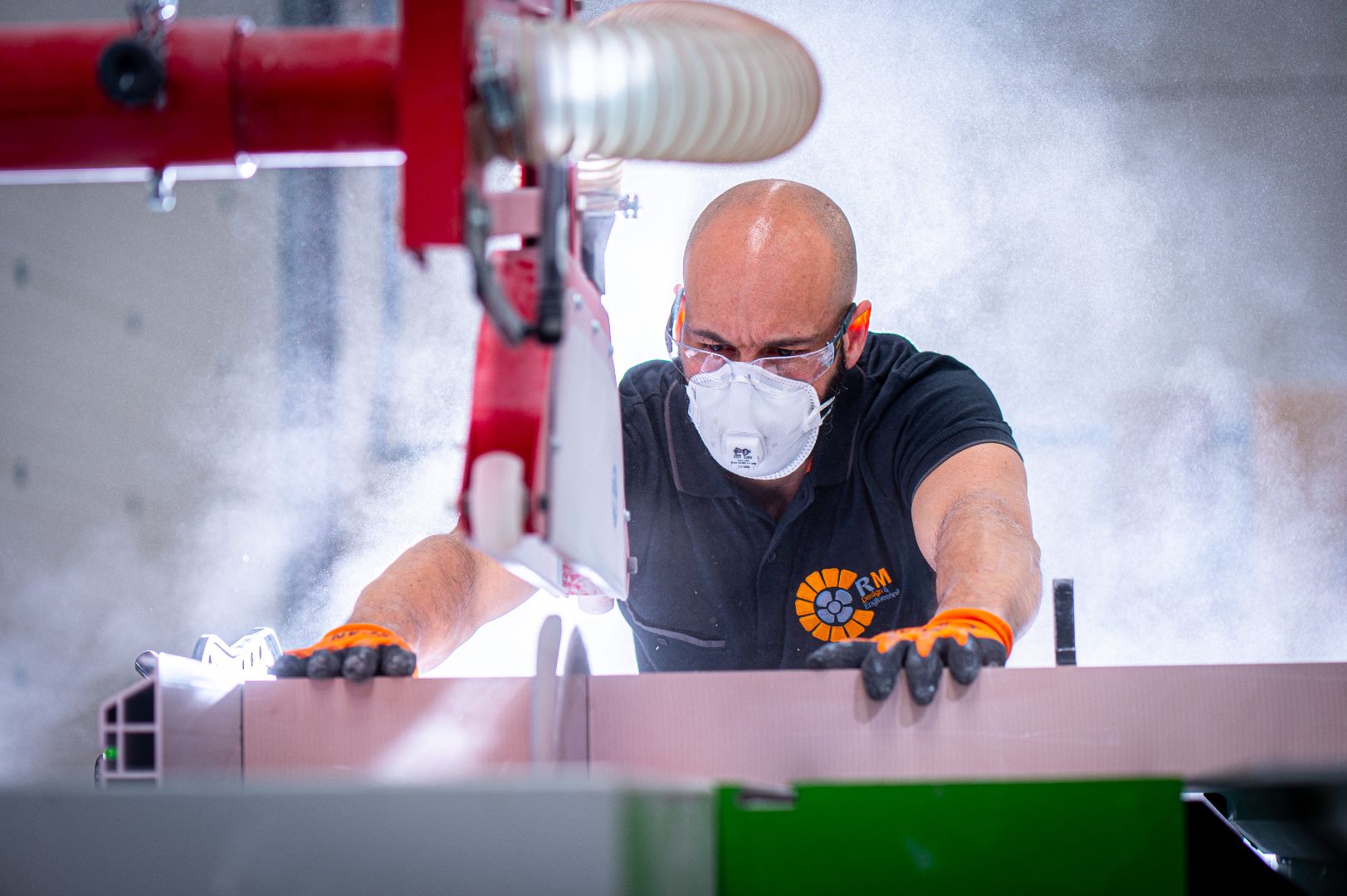

Why RM Design & Engineering?

Because We Take Ownership From First Cut to Final Delivery

Our customers don't come to us because we own expensive machines.

They come back because we deliver. Every time.

We invest continuously in our equipment, planned replacement programmes, not run-to-failure. We maintain our machines to manufacturer specifications. We upgrade software annually.

And we communicate openly throughout every project, no surprises, no excuses.

When a customer sends us a model, they know exactly what they'll get back:

The right part.

The right quality.

On time.

That's not a slogan. It's how we've built a business on repeat customers who stopped shopping around years ago.

Precision Engineering. Advanced Technology. Trusted Delivery.

Start Your Project

Whether you require tooling, prototypes, patterns, fixtures, or precision components, our team is ready to help.

Contact RM Design & Engineering to discuss your machining requirements.

RM Design & Engineering Ltd
Unit 5a
Kineton Road Industrial Estate
Westfield Road
Southam
Warwickshire
CV47 0JH

Tel: 01926 257 530
Email: enquiries@rmde.net
